6 Pane Bi-Folding Doors

6 Pane Bi-Folding Doors

Opening Outside

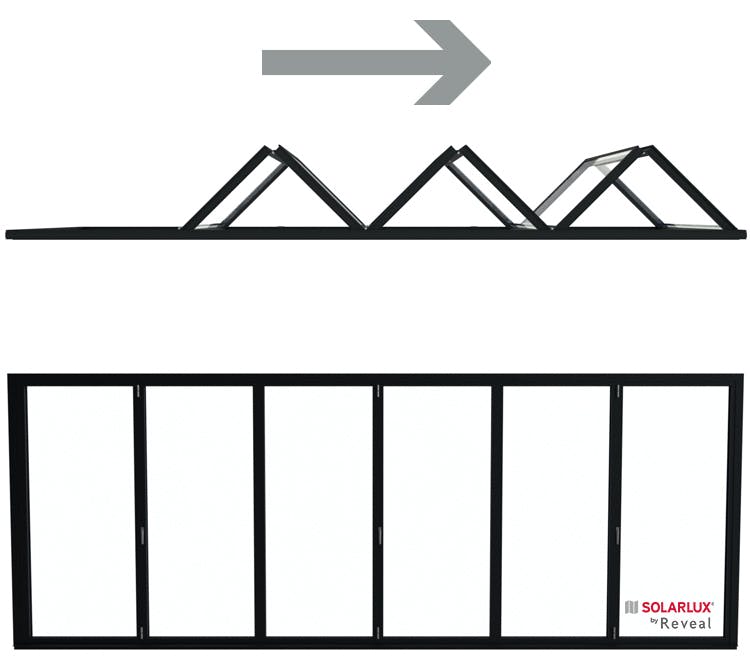

6 Right / O - 6R

In this configuration, all six doors move in the same direction to the right when opening and fold together at the right hand side when viewed from inside.

Please note there is no independent master door and no external handles or locks in this configuration, with the doors being opened with shootbolt handles.

6 Pane Bi-Folding Doors

Opening Outside

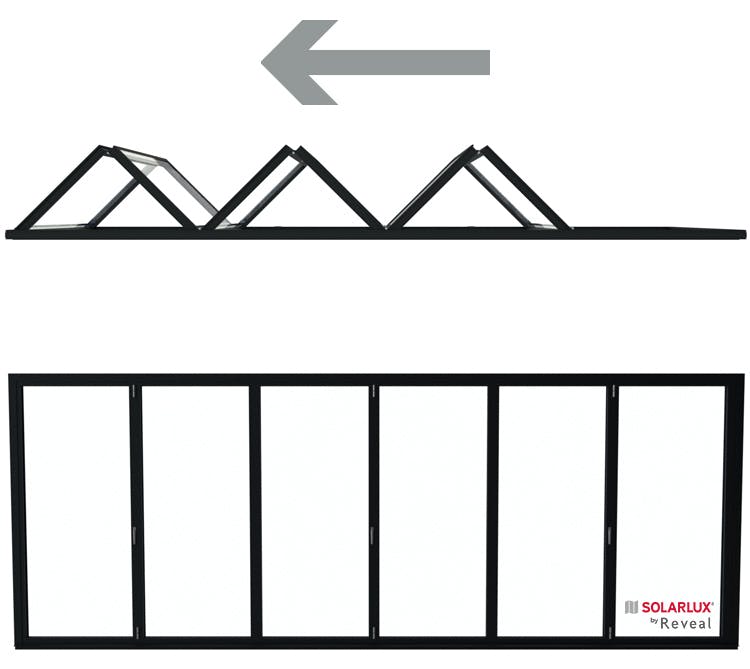

6 Left / O - 6L

When viewed from inside, this configuration sees all six doors fold to the left when opening and fix together at the left hand side.

Please note there is no independent master door and no external handles or locks in this configuration, with the doors being opened with shootbolt handles.

6 Pane Bi-Folding Doors

Opening Outside

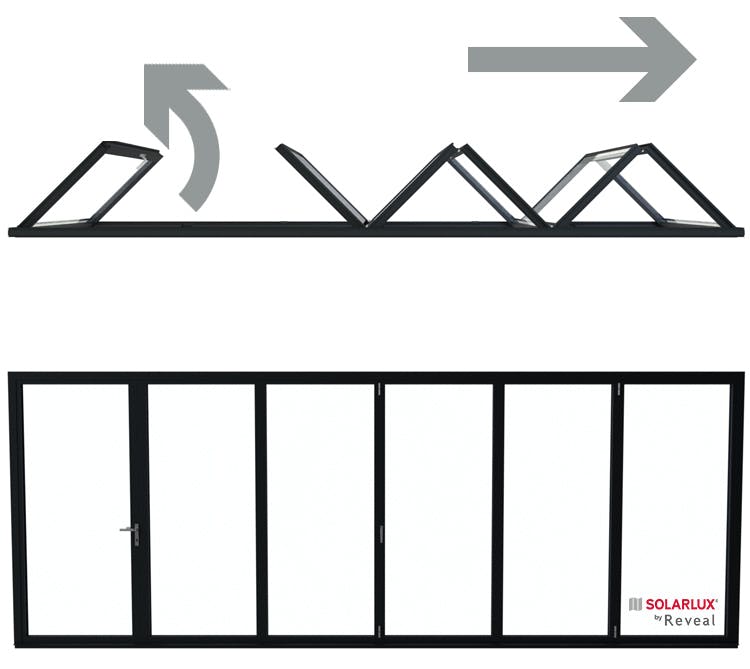

1 Left 5 Right / O - 1L 5R

If you would like an independent access door with a lever handle as part of your 6 pane bi-folding doors, this is one option. When viewed from inside, the master door on the left hand side opens out towards the left, with lever handles inside and out. Then the other five panes move to the right and are stacked together on the right hand side.

6 Pane Bi-Folding Doors

Opening Outside

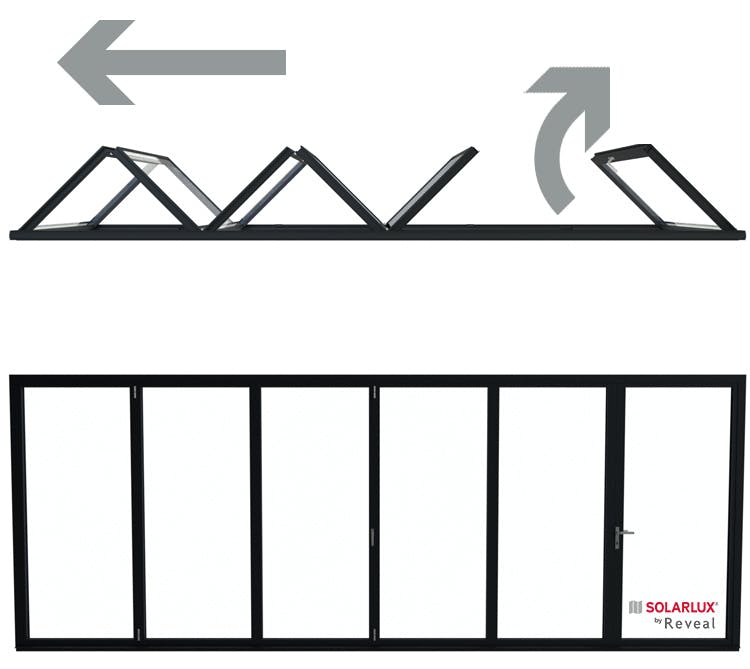

1 Right 5 Left / O - 1R 5L

Another configuration with an independent access door if required, this option sees the master door placed at the right hand side and opening out to the right, when viewed from inside. The remaining five doors then fold towards the left and stack together on the left hand side.

6 Pane Bi-Folding Doors

Opening Outside

2 Left 4 Right / O - 2L 4R

When viewed from inside, this configuration sees two panes move and fold together at the left hand side while the other four panes move and stack to the right.

Please note there is no independent master door and no external handles or locks in this configuration, with the doors being opened with shootbolt handles from the inside only.

6 Pane Bi-Folding Doors

Opening Outside

2 Right 4 Left / O - 2R 4L

Here, as viewed from inside, two panes move towards the right hand side and are fixed together, while the other four panes fold together to the left.

Please note there is no independent master door and no external hndles or locks in this configuration, with the doors being opened with shootbolt handles from the inside only.

6 Pane Bi-Folding Doors

Opening Outside

3 Right 3 Left / O - 3R 3L

This configuration not only looks symmetrical but also features an access door if required. When viewed from inside, three panes fold from the centre out towards the right hand side while the other three panes move in the opposite direction, folding together from the centre towards the left hand side.

The two central doors act as French doors, with the choice to specify either pane as the master door that opens first. This pane can also be used independently as an access door.
